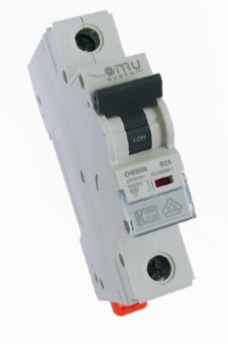

OMU 113B 1P 13A/B jistič 6kA OMB06113B

• Number of poles: 1 pole • Module width: 1 module (17.8mm ± 0.1mm) • Rated current: 1, 2, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63A • Characteristics: B • Breaking capacity: 6kA • IP protection: IP20 • Overload and short-circuit protection • Rated current: AC 1-pole, 230/400V • Nominal insulation voltage Ui: 500V • Rated impulse resistance is the Uimp voltage • Energy Restriction: Class 3 • Ambient temperature: -5 ~ +40 ° C • Mounting: 35mm DIN rail
