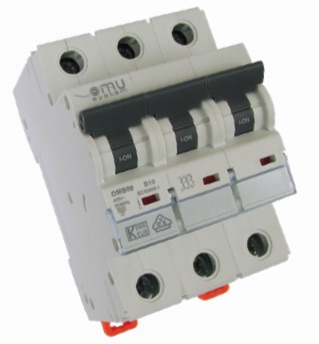

OMU 316C 3P 16A/C jistič 6kA OMB06316C

• Number of poles: 3 pole • Module width: 3 module (53.4mm ± 0.1mm) • Rated current: 1, 2, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A • Characteristics: C • Breaking capacity: 6kA • IP protection: IP20 • Overload and short-circuit protection • Rated current: AC 1-pole, 230/400V • Nominal insulation voltage Ui: 500V • Rated impulse resistance Uimp: 4000V • Energy Restriction: Class 3 • Ambient temperature: -5 ~ +40 °C • Mounting: 35mm DIN rail
